2009London 2012 Games Shooting Ranges

Client

ES Global Ltd

Location

London

Architect

MAGMA

Contractor

John SISK & Son Ltd

Fabric

PVC

Product

Architectural
Bespoke Tensile Fabric Structures
Event Structures

Services

  • Design
  • Installation
  • Maintenance
  • Manufacturing
  • Project Management

Royal Artillery Barracks Temporary Shooting Ranges

Stunning architecture has become a trademark of the modern Olympic and Paralympic Games, with environmental credentials being of paramount importance. As such these three structures are not only at the forefront of contemporary design, they are also fully demountable and relocatable, amply fulfilling these criteria. Together they hosted the Shooting, Paralympic Shooting and Paralympic Archery events. The set consisted of the 25 meter, Combined 50 & 100 meter and the Finals Shooting Ranges.

Solution

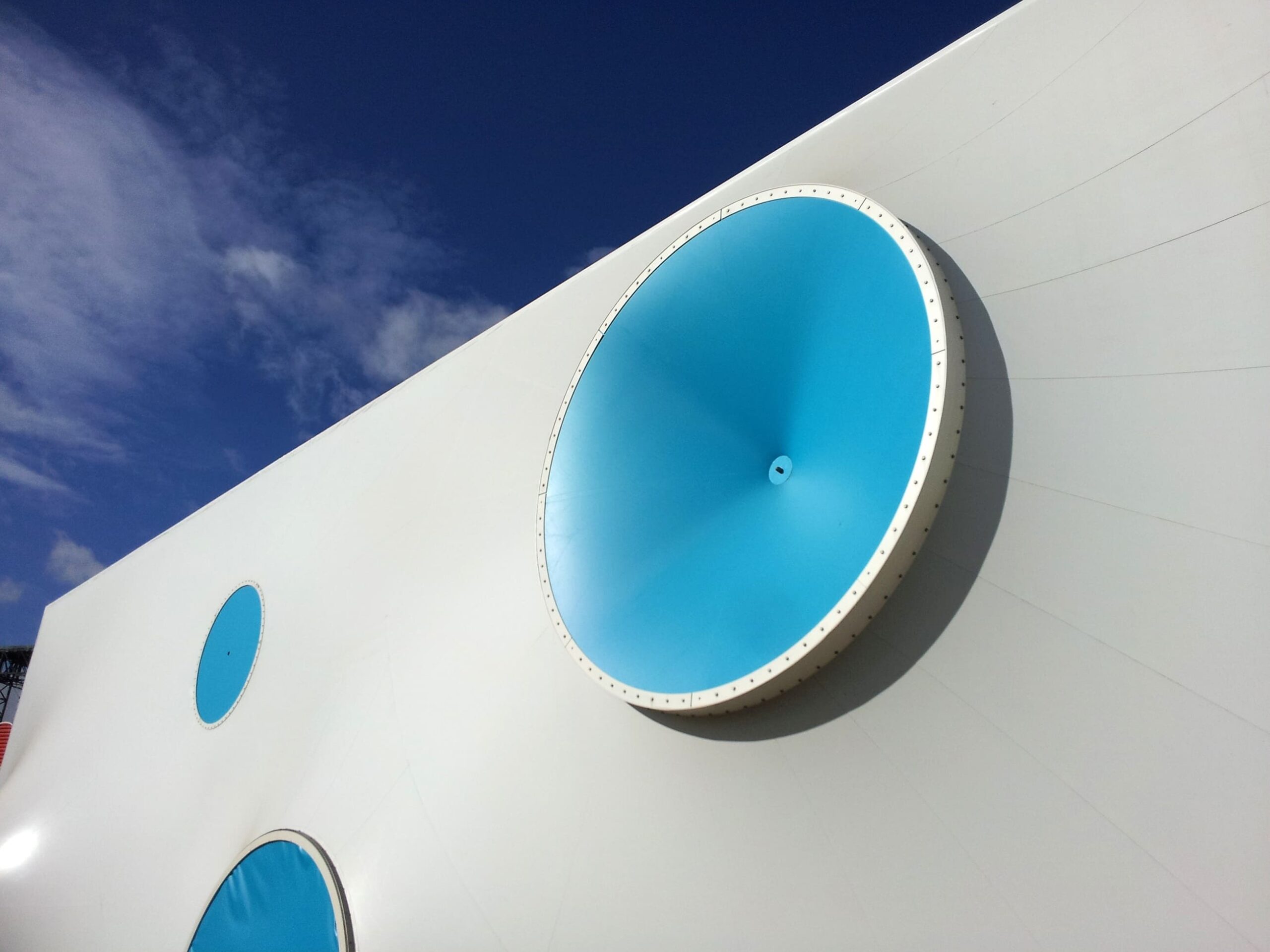

Each event structure is individually identified by the bright discs of colour which are set into the high and low points that create the undulations in the facades. The Orange themed Finals building measures in at a massive 25m x 47m x 50m, requiring 16,000m2 of fabric to fully clothe it inside and out. The Magenta themed Combined Range measuring 10m x 20m x 106m, requires 9,000m2 of fabric and the blue themed 25m Range building measuring 25m x 55m x 10m, 5,000m2. The high level discs incorporate ventilation openings whilst the ground level ones identify doorways for ingress through similarly coloured tunnels to the sporting arenas.

Results

IFAI International Achievement Award 2013 Winner.
