Various Specialist Use Canopies

Specialist use canopies for a wide range of different situations

Key Uses

  • Shelter
  • Covered Seating Area
  • Car Park
  • Market Cover
  • Playground Protection
  • Point of Sale

As you might guess, our ‘Various’ family covers a wide range of applications! The Jura and Pentland modular canopies are ideal for car parks and transport shelters, our Preseli canopy is an eye catching design suitable for covering large areas with flair whilst the Cheviot is a plain, four masted pyramid fabric canopy that is popular with schools. The Playshade and Playsail canopies offer economical protection from the elements, also perfect for education applications, whilst the Pennine includes side glazing for a fully enclosed point-of-sale fabric canopy structure.

Note: we can adapt the standard canopies to suit your footprint and additional extras include gutter upstands and rainwater collection. All our canopies are engineered to British Standards, suitable for year round use and come with a ten year warranty – although they are expected to last much longer!

Structures in this Range

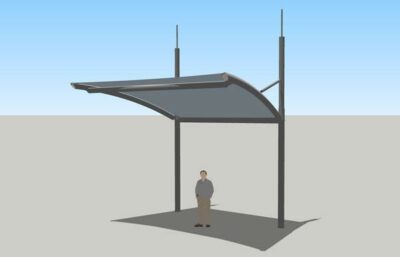

Pentland

Preseli

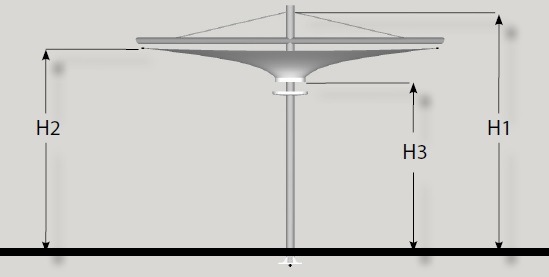

Bodmin 1P 500 INV

Bodmin 1P 600 INV

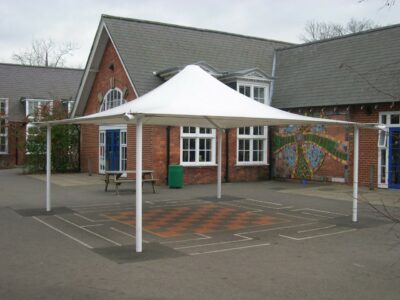

Cheviot 4P 500

Playsail 4P 500

Playshade 4TP 500

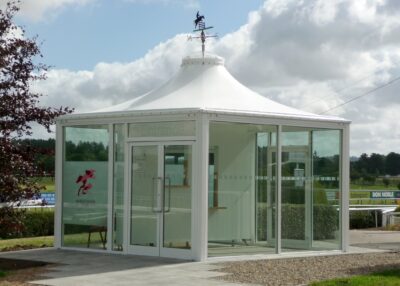

Pennine

Jura

Design

  • Fully engineered for year round use
  • Structural steelwork designed to BS 5950-1:2000 & BS EN 10025
  • BS 6399 part 2 and 3 for wind and snow loading

Fabric

  • PVC coated polyester with weldable PVDF lacquer
  • All fabrics are fire rated to EN 13501-1 B-s2,dO
  • White and cream as standard
  • Design life 18-20 years

Cables and tensioners

  • Grade 316 stainless steel

Columns

  • Grade S355 Mild Steel CHS
  • Two pack polyurethane paint system
  • 15 years to first maintenance
  • Any standard RAL colour

Foundations

  • We provide loading figures for your engineer to design foundations suited to local ground conditions
  • Typical details available on request

Warranty

  • 10 year warranty
