Bodmin Canopy

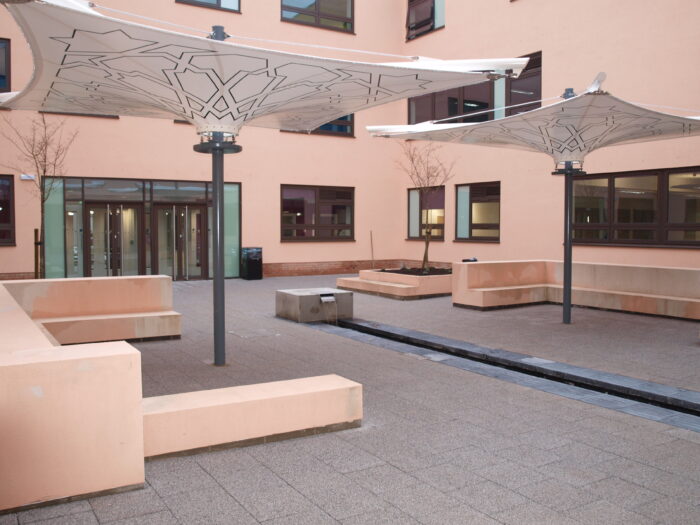

The Bodmin canopy is a versatile canopy which can be used to span walkways and outdoor areas.

Key Specifications

  • Fully engineered for year round use
  • Structural steelwork designed to BS 5950-1:2000 & BS EN 10025
  • BS 6399 part 2 and 3 for wind and snow loading
  • PVC coated polyester with weldable PVDF lacquer
  • All fabrics are fire rated to EN 13501-1 B-s2,dO
  • White and cream as standard
  • Design life 18-20 years
  • Grade 316 stainless steel
  • Grade S355 Mild Steel CHS
  • Two pack polyurethane paint system
  • 15 years to first maintenance
  • Any standard RAL colour
  • We provide loading figures for your engineer to design foundations suited to local ground conditions
  • Typical details available on request
  • 10 year warranty

The Bodmin Range

Perfect for covering large areas of seating, or for linking together to span and shelter a walkway, the Bodmin canopy is an ideal option and comes in two sizes to suit individual needs.

In the Bodmin Range

Bodmin 1P 500 INV

Bodmin 1P 600 INV

Bodmin 1P 500 INV

Warranty for 10 years. Design and planning advice is available for this product, as well as installation. Please contact us for more information on planning and installation, or download a product sheet below for technical information, specifications, dimensions and further details.

Bodmin 1P 600 INV

Warranty for 10 years. Design and planning advice is available for this product, as well as installation. Please contact us for more information on planning and installation, or download a product sheet below for technical information, specifications, dimensions and further details.
