Cairngorm Canopy Range

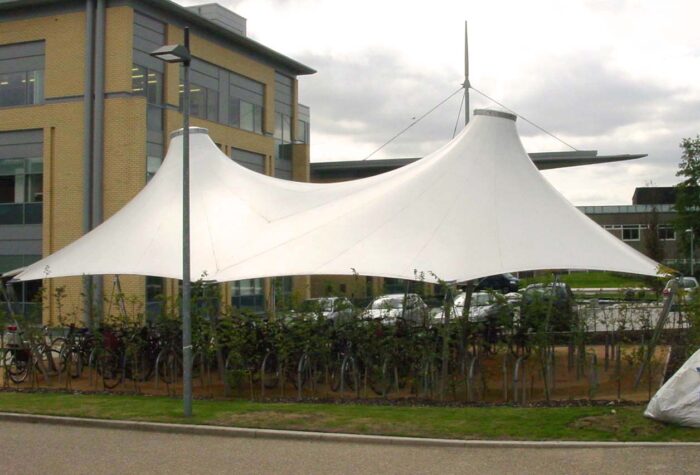

Conical fabric canopy structures featuring a single central mast and several perimeter masts with tie backs.

  • Fully engineered for year round use
  • Structural steelwork designed to BS 5950-1:2000 & BS EN 10025
  • BS 6399 part 2 and 3 for wind and snow loading
  • PVC coated polyester with weldable PVDF lacquer
  • All fabrics are fire rated to EN 13501-1 B-s2,dO
  • White and cream as standard
  • Design life 18-20 years
  • Grade 316 stainless steel
  • Grade 316 stainless steel
  • Two pack polyurethane paint system
  • 15 years to first maintenance
  • Any standard RAL colour
  • We provide loading figures for your engineer to design foundations suited to local ground conditions
  • Typical details available on request
  • 10 year warranty

Of all the canopy families, this one is possibly the most economical way to cover a large expanse, with the largest in the range measuring 12m x 16m.

Structures in This Range

Cairngorm 1P 1000

Cairngorm 1P 1600

Cairngorm 2P 16-12

Cairngorm 1P 1000

Warranty for 10 years. Design and planning advice is available for this product, as well as installation. Please contact us for more information on planning and installation.

Cairngorm 1P 1600

Warranty for 10 years. Design and planning advice is available for this product, as well as installation. Please contact us for more information on planning and installation.

Cairngorm 2P 16-12

Warranty for 10 years. Design and planning advice is available for this product, as well as installation. Please contact us for more information on planning and installation.

Contact Us

To discuss using the Cairngorm canopy for your next project, contact us using this form.
